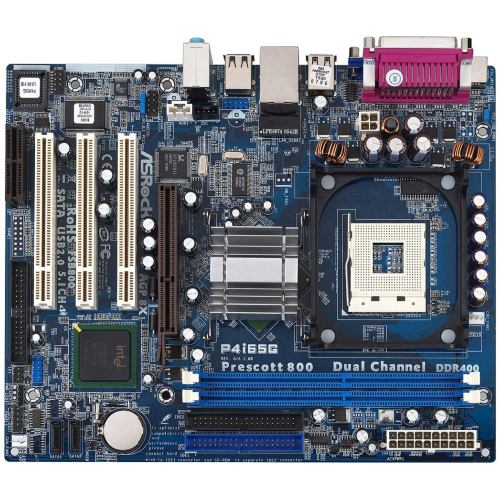

SCHEDA MADRE PRESCOTT ASROCK P4i65G SOCKET 478 CHIPSET INTEL 865G

Description

SCHEDA MADRE PRESCOTT ASROCK P4i65G SOCKET 478 CHIPSET INTEL 865G, COME NUOVA, ancora imballata, in confezione originale

ManufacturerASRock
Manufacturer Part #90-MXG2R0-A0UAYZ
Performance
Product TypeSystem Board
Form FactorMicro ATX
CPU Socket TypeSocket 478
Supported CPU(s)Intel Celeron D Processor
Intel Pentium 4 Processor
Supported CPU TechnologiesHyper-Threading Technology
ChipsetIntel 865G
South Bridge ChipsetIntel ICH5
Number of Memory Slot(s)2
Number of Memory Channel(s)2
Supported Memory Standard(s)PC-2100 (DDR-266)
PC-2700 (DDR-333)
PC-3200 (DDR-400)
Maximum Installed Memory2 GB
Expansion SlotsAGP 8x
PCI
Storage ControllerSATA 1.5 Gbps
NetworkEthernet
Connectors/PortsChassis Fan Connector
COM
CPU Fan Connector
Parallel
PS/2 Mouse
RJ-45
USB 2.0
VGA
Connectors/Ports DetailsConnector
2 x SATA 1.5 Gb/s connectors (No support for RAID and Hot Plug functions)
2 x ATA100 IDE connectors (support 4 x IDE devices)
1 x Floppy connector
1 x IR header
1 x COM header
- CPU/Chassis FAN connectors
20 pin ATX power connector
4 pin 12V power connector
CD in header
AUX in header
Front panel audio connector
2 x USB 2.0 headers (support 4 USB 2.0 ports; 2 of them are shared with USB4_5)

Rear Panel I/O
1 x PS/2 Mouse Port
1 x PS/2 Keyboard Port
1 x VGA Port
1 x Parallel Port (ECP/EPP support)
6 x Ready-to-Use USB 2.0 Ports
1 x RJ-45 LAN Port
Audio Jack: Line in / Front Speaker / Microphone
